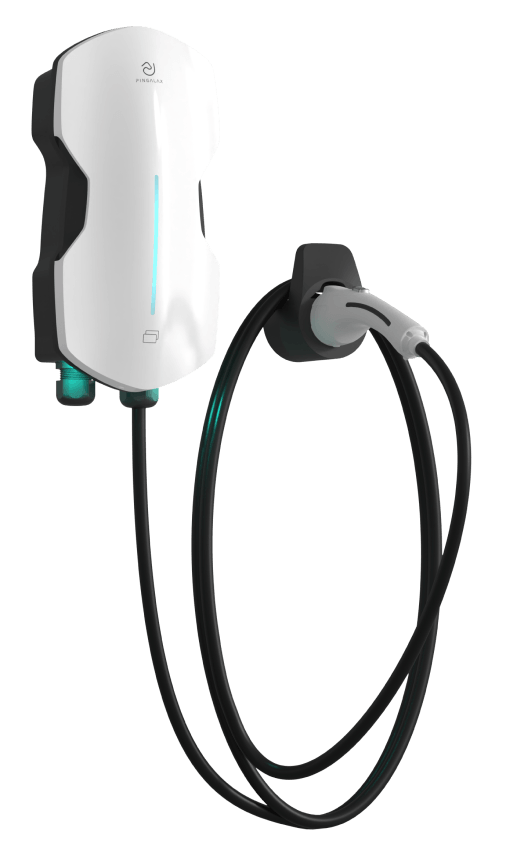

7 KW AC EV Charger
Technical Specifications
Product Name AC EV Charger
Model PCAC-J5-EU7/230
Date Jan 2026
Connector IEC62196-2,Type2
Dimension 224mm x 128mm x 310mm
Input Phase L+N+PE
Rated Input 230VAC,5OHZ, 32A AC
Rated Output 230VAC,50HZ,32A AC
Rated Power 7kW
Power Line Single Phase
Protection Level IP65
OTR -30 to 50℃
Leakage Parameters lΔdc:6mAdc lΔn:30mA
Mounting Wall or with Pedestal
Connectivity via Bluetooth, Wi-Fi, Ethernet
User Authentication App, RFID, AutoStart
22 kW AC EV Charger
Technical Specifications
Product Name AC EV Charger
Model PCAC-J4-EU22/400
Date Jan 2026
Connector IEC62196-2, Type2
Dimension 208mm x 153mm x 418mm
Input Phase 3L+N+PE
Rated Input 400VAC, 5OHZ, 32A AC
Rated Output 400VAC, 5OHZ, 32A AC
Rated Power 22 kW
Power Line Three Phase
Protection Level IP55
OTR -30 to 50℃
Leakage Parameters Type A + 6mA
Mounting Wall or with Pedestal
Connectivity via Bluetooth, Wi-Fi, Ethernet
User Authentication App, RFID, AutoStart
